燃气发电机组的构造与工作原理

发布时间:2024-10-17 发布人:中拓 发布来源:/

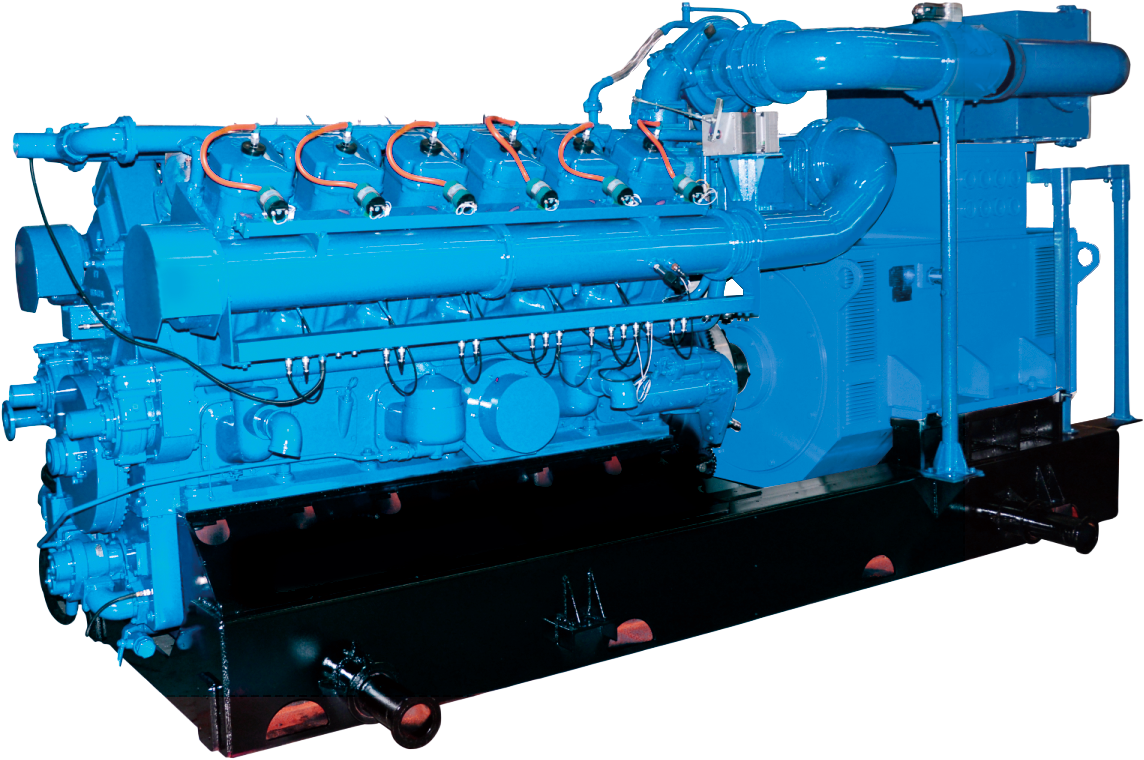

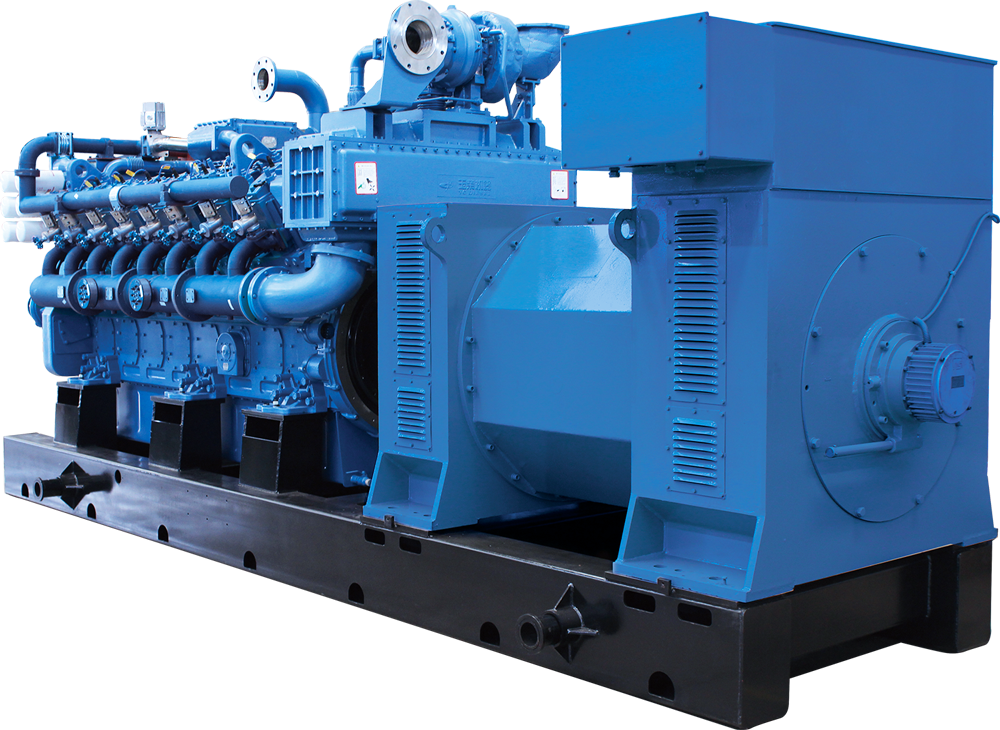

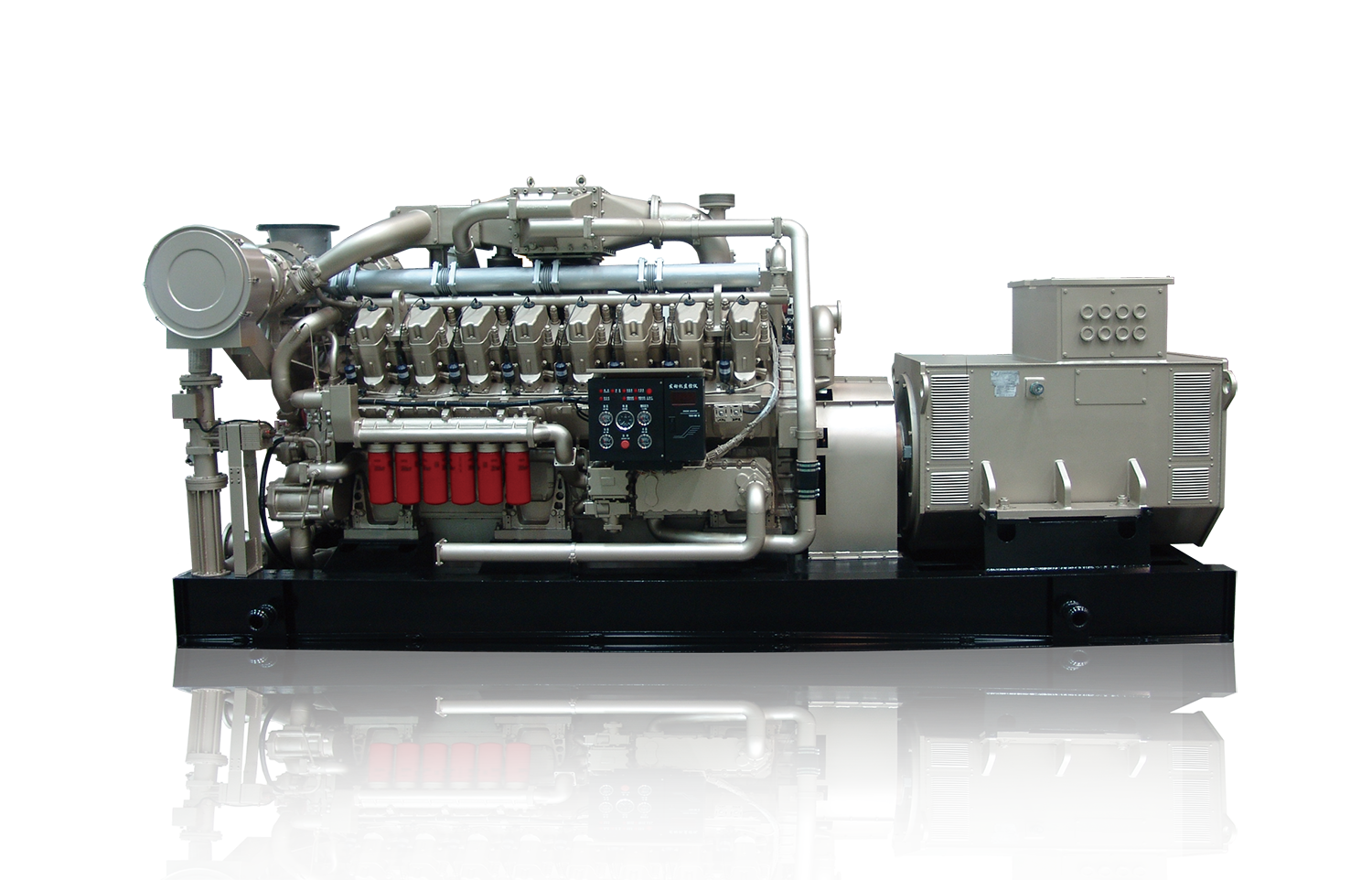

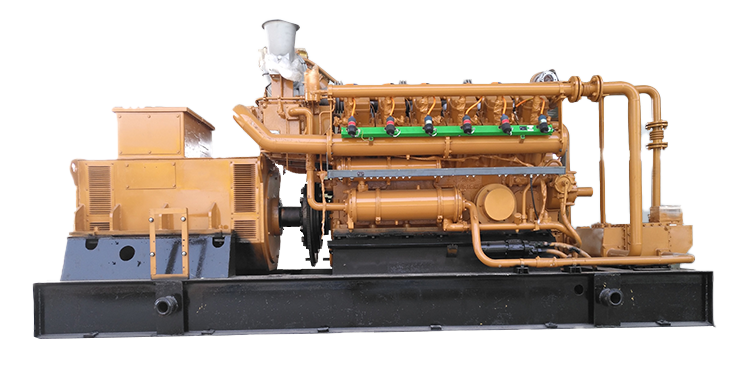

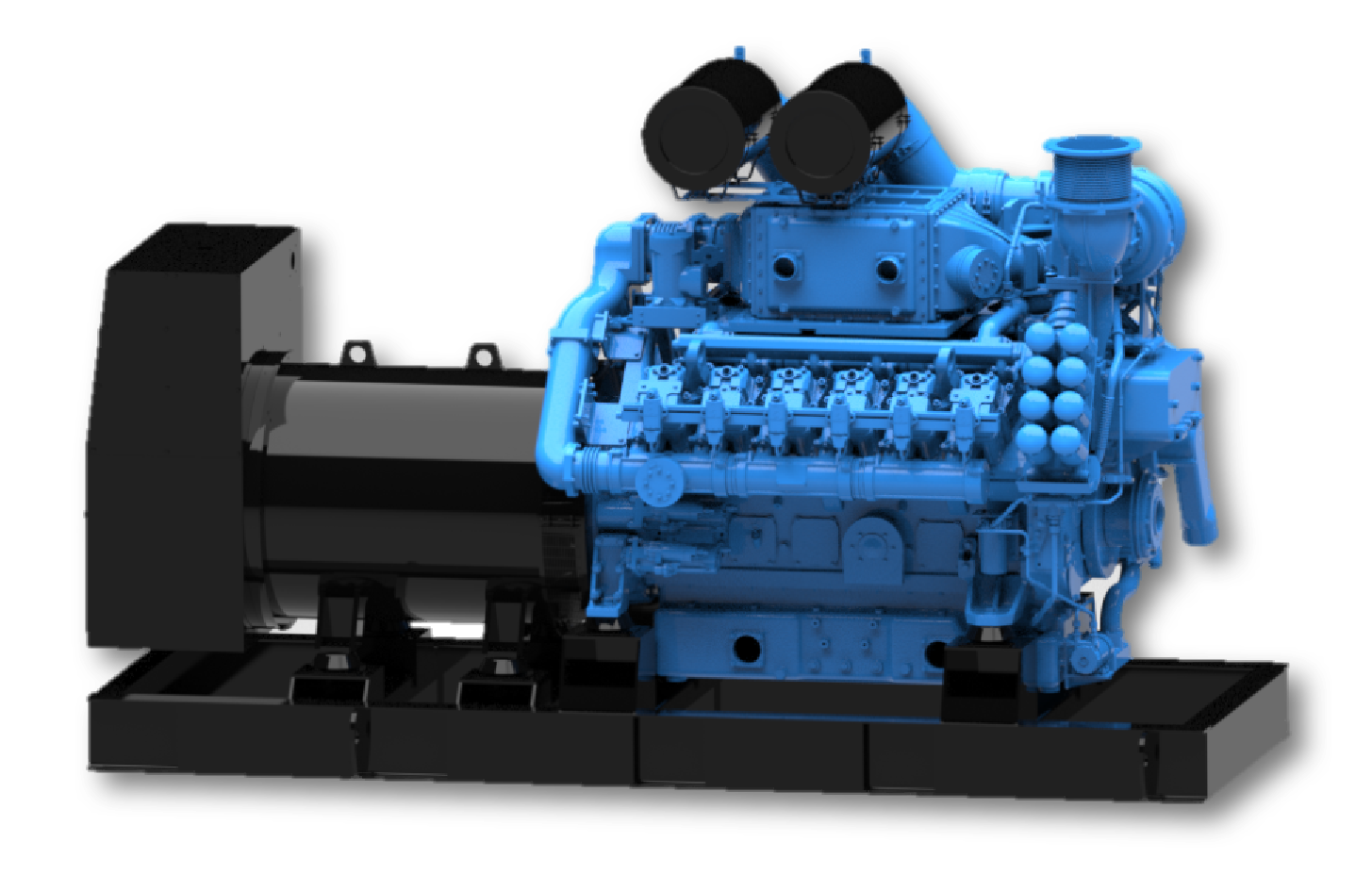

燃气发电机组主要由燃气系统、发动机系统和发电机系统三部分组成。以下是其基本构造和工作原理的详细介绍:

The gas generator set is mainly composed of three parts: gas system, engine system, and generator system. The following is a detailed introduction to its basic structure and working principle:

基本构造:

Basic structure:

1.燃气系统:包括气体源、气体调节、气体过滤、气体控制等设备。其主要作用是将燃气输送到发动机中进行燃烧。

1. Gas system: including gas source, gas regulation, gas filtration, gas control and other equipment. Its main function is to deliver gas to the engine for combustion.

2.发动机系统:由发动机和其它辅助设备组成。发动机是燃气发电机组的核心部件,负责将燃气燃烧产生的高温高压气体转化为机械能。

2. Engine system: composed of an engine and other auxiliary equipment. The engine is the core component of a gas generator set, responsible for converting the high-temperature and high-pressure gas generated by gas combustion into mechanical energy.

3.发电机系统:主要由发电机和其它配套设备组成,它的功能是将发动机输出的机械能转化为电能,并通过输出电缆输送到电网或负载。

3. Generator system: mainly composed of a generator and other supporting equipment, its function is to convert the mechanical energy output by the engine into electrical energy, and transmit it to the power grid or load through output cables.

1f7b2c8f9c4b81e1c99df0a7dc8939e

工作原理:

working principle:

1.燃气进入:燃气从储气罐、天然气管道或煤矿瓦斯管道等燃气来源处进入发动机,进气阀门控制气体的流量。

1. Gas entry: Gas enters the engine from gas sources such as gas storage tanks, natural gas pipelines, or coal mine gas pipelines, and the intake valve controls the flow of gas.

2.压缩空气:进入发动机的燃气与压缩空气混合后,由活塞压缩,使气体的温度和压力都升高。

2. Compressed air: After the gas entering the engine is mixed with compressed air, it is compressed by the piston, causing the temperature and pressure of the gas to increase.

3.燃气燃烧:混合后的气体进入燃烧室,通过点火器点燃,燃烧产生高温高压气体,使活塞向下运动,推动曲轴转动。

3. Gas combustion: The mixed gas enters the combustion chamber and is ignited by the igniter, producing high-temperature and high-pressure gas that moves the piston downward and drives the crankshaft to rotate.

4.发电:发动机通过曲轴将机械能传递给发电机,发电机再将机械能转化为电能,终通过输出电缆输送到电网或负载。

4. Power generation: The engine transmits mechanical energy to the generator through the crankshaft, and the generator converts the mechanical energy into electrical energy, which is ultimately transmitted to the grid or load through output cables.
